Mufa RJ45 Cat6a Cat7 Cat7a Cat8.1 ecranata 8p8c 1.2-1.45mm 22-24AWG LOGILINK MP003 Mufa RJ45 Cat6a Cat7 Cat7a Cat8.1 ecranata 8p8c 1.2-1.45mm 22-24AWG LOGILINK MP003

Mufa RJ45 Cat6a Cat7 Cat7a Cat8.1 ecranata 8p8c 1.2-1.45mm 22-24AWG LOGILINK MP003.
Producator LOGILINK
Conector mufa
Tip conector RJ45
Numarul de pini 8
Categoria Ethernet Cat 6a, Cat 7, Cat 7a, Cat 8.1
Versiune conector ecranat
Tip dispunere pini 8p8c
Montare mecanica pe cablu
Montare electrica crimpat
Orientare spatiala drept
Subtip conector tata.

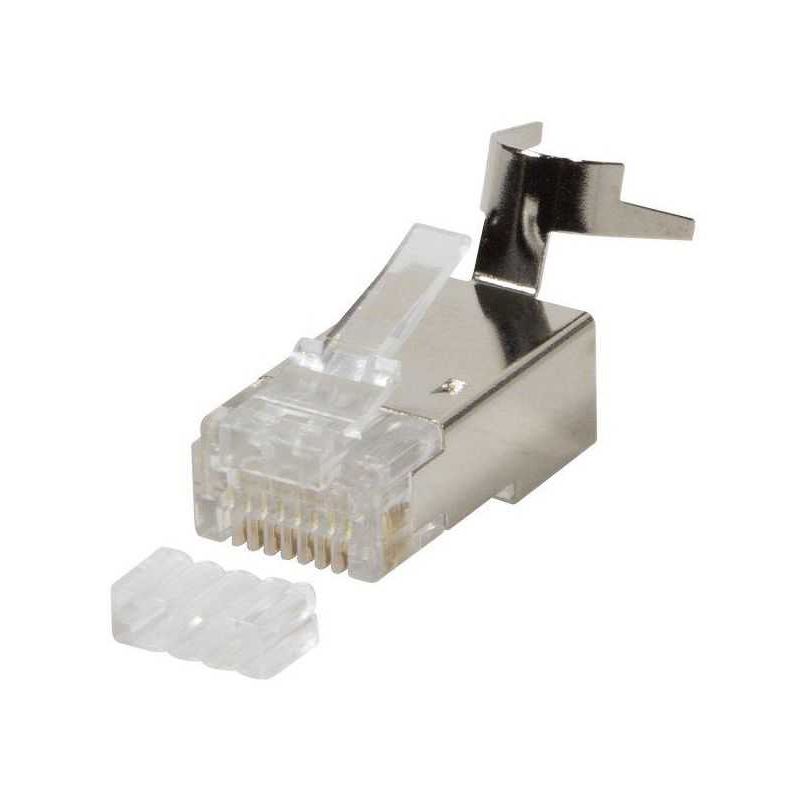

Cat.8.1/Cat.6A RJ45 Modular Plug, Shielded
Features
Made in China
www.logilink.de
For shielded cable Cat.6A, Cat.7, Cat.7A and Cat.8.1
Suitable for round cable with max. OD of 8mm
Used for isolated wire OD: 1.2-1.45mm
For solid and stranded cable 22AWG-24AWG
Contacts: Pins 50μ gold plating
Shell: Copper nickel plating
Housing: PC UL94V-2, transparent color
Withstand tension up to 20kg after assembly
Guide plate included for easy wire installing
Suitable strain relief boot: MP0034 or MP0035
Proper Tools: WZ0029 + WZ0032.
