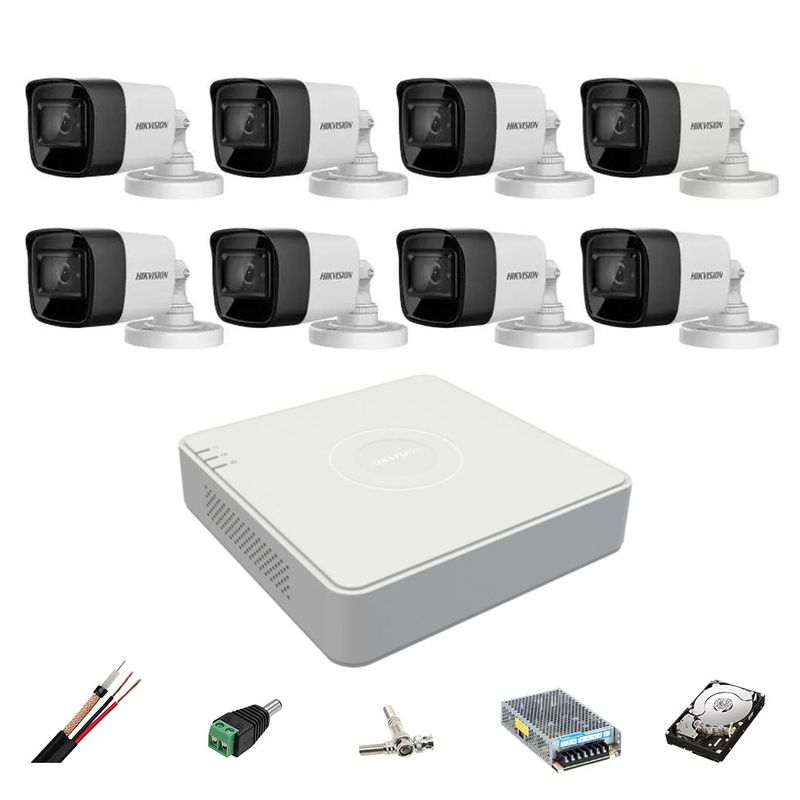

Sistemul contine:
- 8x Camera exterior 4 in 1 8MP, 2.8 mm, IR 30 m - DS-2CE16U1T-ITF-2.8 mm
- 1x DVR 8 canale 4 K 8MP - iDS-7108HUHI-M1-S
- 1x Cablu coaxial cu alimentare 100 m
- 8x Mufa TATA cu surub
- 16x Conectori BNC
- 1x Sursa alimentare 12 V 12,5 A
- 1x Hard Disk 2TB
Camera exterior 4 in 1 8MP, 2.8 mm, IR 30 m
- Posibilitatea de a comuta intre tehnologiile TVI/AHD/CVI/CVBS
- Posibilitate de aA selecta rezolutie: 8MP/5MP/4MP/1080P
- Senzor deA 8.29 MP Progressive Scan, rezolutie video 3840 A— 2160 pixeli (8 Megapixeli)
- Lentila fixa de 2.8 mm, asigura unghiA vizual de 102.2 A°
- Distanta IR pe timp de noapte pana la 30 metri
- Temperatura de functionare de la a€" 40 A°C pana la + 60 A°C, clasa protectie IP67
DVR 8 canale 4 K
Model/producator
HIKVISION
Inregistrare
8 MP@8 fps/3 K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Camere suportate
HDTVI, AHD, HDCVI 8 MP@15 fps, 8 MP@12.5 Fps, 3 K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps Analog + pana la 16 ch. IP max 8MP;
Compresie
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Redare
1-8 canale sincronizate
Intrari
8 x BNC; 1 x audio, 8 x audio over coaxial, LAN 10/100/1000 Mbps, 2 x USB
Iesiri
HDMI, VGA a€" (simultan); 1 audio
Stocare
1 x HDD SATA max 10TB (neinclus)
Alimentare
12 V DC
Consum
maxim 10 W (fara HDD)
Dimensiuni
200 A— 200 A— 45 mm
Analiza video (VCA)
Detectie om/masina (4 canale), protectie perimetru
Greutate
maxim 1 Kg
