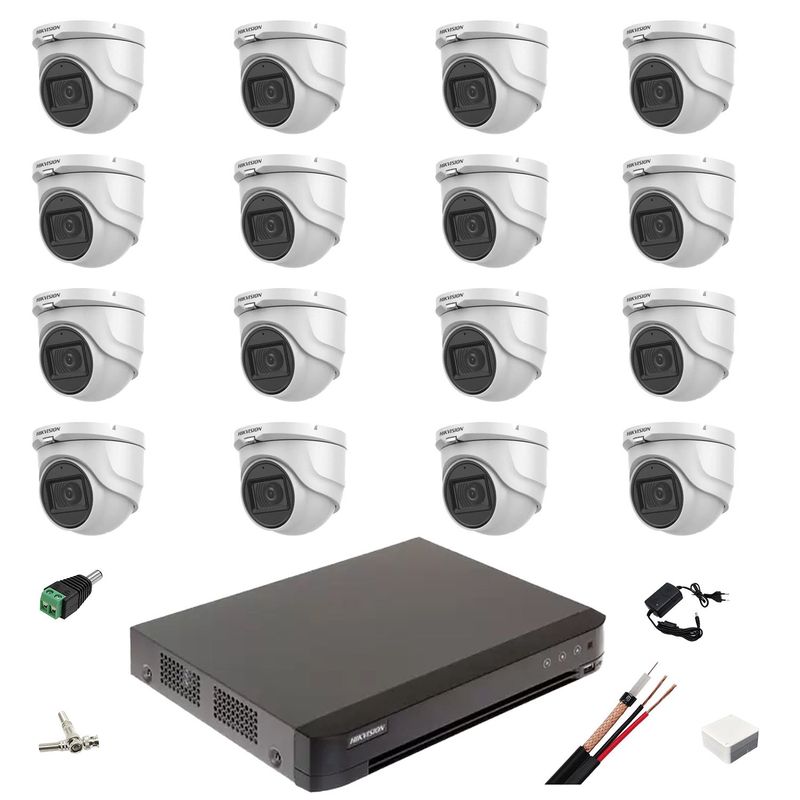

Sistemul contine:
- 16x Camera 5MP 2.8mm IR 30m, Audio integrat - DS-2CE76H0T-ITMFS-2.8mm
- 1x DVR AcuSense 16canale video 4MP - iDS-7216HQHI-M1-S
- 1x Cablu coaxial cu alimentare cupru 100% 305m
- 16x Mufa alimentare TATA cu surub
- 32x Conectori BNC
- 16x Alimentator 12V 2A
- 16x Doza 100x100x50mm
Camera 5MP 2.8mm IR 30m, Audio integrat
Camera supraveghere video TurboHD
Hikvision cu microfonA integrat, rezolutie 5.0MP(2560× 1944), lentila 2.8mm, unghi vizualizare 110.7A°, distanta IR 30M, semnal iesireA selectabil: TVI/AHD/CVI/CVBS, A microfon incorporat, A tehnologie de transmisie audio 'over coaxial', temp. de functionare: -40A°C~60A°C.
Model/producator:
HIKVISION
Senzor:
5MP CMOS Image Sensor
Rezolutie:
2560 (H) AA— 1944 (V)
Lentila:
2.8 mm unghi vizualizare 110.2AA°
Iluminare minima:
0.01 Lux (F1.2 AGC ON) 0 Lux IR pornit
Distanta IR:
pana la 30 metri Tehnologie Smart IR
Alimentare:
12 VDCAA±25% consum max. 3.7W
Indicativ protectie:
IP67
Dimensiuni:
AA¸82.6 mm AA— 90 mm AA— 79.37 mm
Greutate:
500 gr.
Temperatura de operare:
-40AA°C ~ +60AA°C
Semnal iesire:
TVI/AHD/CVI/CVBS selectabil
Audio:
Microfon integrat tehnologie 'over coaxial'
DVR AcuSense 16canale video 4MP
| Model/producator |
HIKVISION |
| Inregistrare |
Inregistrare: 4 MP lite/3MP/1080P @15fps, 1080pLite/720P/WD1/D1 @ 25fps |
| Camere suportate |
HDTVI, AHD, CVI 4MP/ 3MP/ 1080P/ 720P, Analog + 2 ch. IP max 4MP; |
| Compresie |
H265+/H265/H264/H264+ |
| Redare |
1-16 canale sincronizate |
| Intrari |
16 x BNC; 1 x audio, LAN 10/100/1000 Mbps, 2xUSB, RS485 |
| Iesiri |
HDMI, VGA, CVBS - (simultan); 1 audio |
| Stocare |
1 x HDD SATA max 10TB (neinclus) |
| Stocare Cloud |
Dropbox/Google Drive/Microsoft OneDrive |
| Alimentare |
12V DC |
| Consum |
24W (fara HDD) |
| Dimensiuni |
315 × 242 × 45 mm |
| Analiza video (VCA) |
Detectie om/masina (4 canale), detectie faciala (1 canal), trecere linie, intrus in perimetru |
